NEW PRODUCTS

VIBES Marketing & Services has enhanced its range of products with the introduction of a choice of Suppressors and Waterproof Lamps .

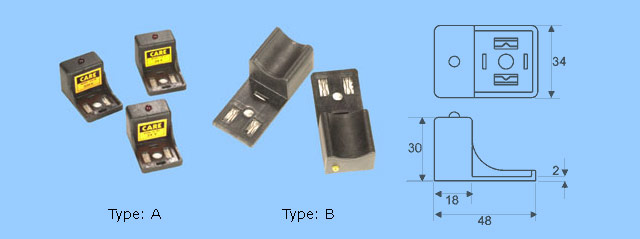

SURGE SUPPRESSORS FOR SOLENOID VALVES

Noise Suppressors and Indicators for AC/DC solenoid coils for hydraulic/pneumatic valves with plug-in connectors conforming to DIN 43650 types A & B.

Protects the CNC/PLC systems from noise during solenoid operation. Bright LED indication when solenoid is energized. No additional wiring or soldering required. Protects against high voltage transients in power supply. Improves relay contact life.

Models:

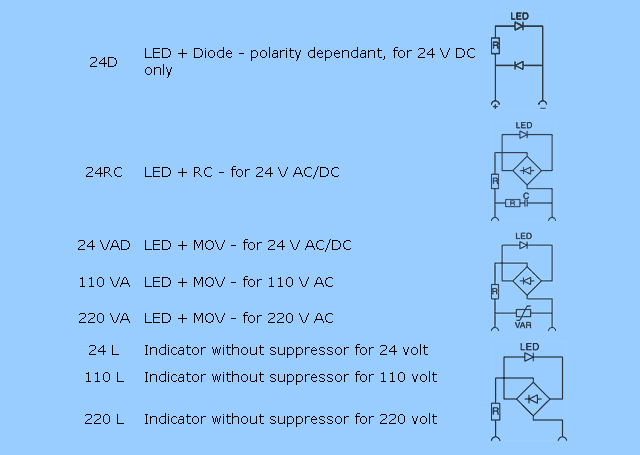

Suppressor Models

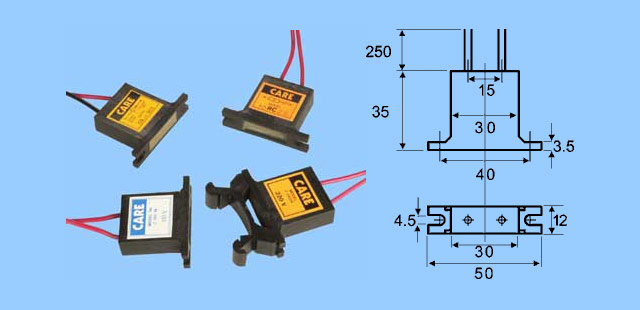

CONTACTOR COIL SUPPRESSORS

For troublefree operation of machines and control systems, the need to suppress harmful voltage surges - transients - produced when motors, contactors and other inductive loads are switched off, is well accepted.

Vibes Marketing make contactor coil surge suppressors that are available in varistor based, RC based and Diode based types.

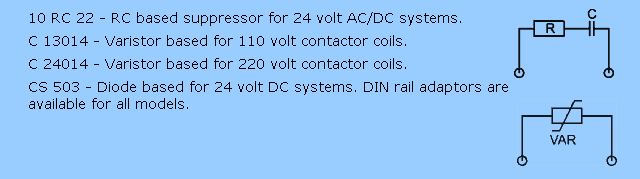

Models

MOTOR SUPPRESSORS

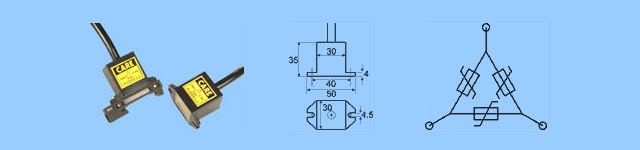

Varistor based - model M 44020 X 3
Three varistors interconnected in delta formation with flying leads 25 cm long. Standard supply is with varistor RDN 440/20. Units with higher voltages can be supplied on request. Suitable DIN rail adaptors also available.

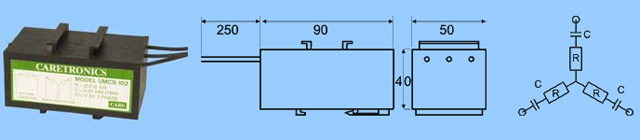

RC based - UMCS 102
Piggyback motor transient suppressor for mounting under contactor, star connected Resistance Capacitor units with 25 cm long leads. Capacitor rating 0.47 mfd 1000 V DC and resistance 220 ohms, 5 watt wire wound type.

WATERPROOF LAMP - CFLB 9

Light Source - Compact Fluorescent tube 9 watt colour 86, rated lumen - 600
Choke - copper, externally mounted
Wire - 2 core, 0.5 sq mm, standard wire length 2 meters
External glass tube - 60 mm OD, thick walled shock proof borosilicate glass

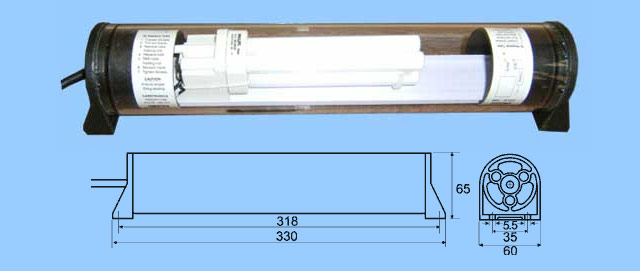

WATERPROOF LAMP - CFLB 14e

WATERPROOF LAMP - CFLB 14e

Light source - Compact fluorescent tube 14 watt colour 86, rated lumen - 800
Choke - integral with tube
Wire - 2 core, .5 sq mm, standard wire length 2 meters
External glass tube - 60 mm OD, thick walled shock proof borosilicate glass

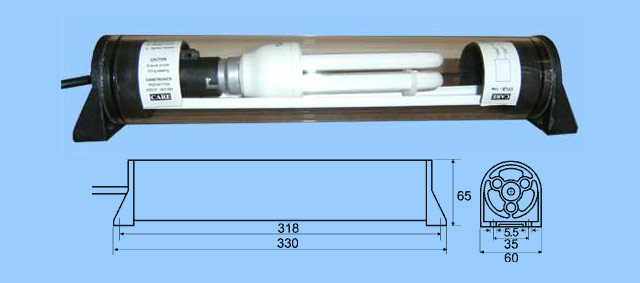

WATERPROOF LAMP - CFLB 18

Light source - Compact fluorescent tube 18 watt colour 86, rated lumen - 1200
Choke - copper, externally mounted
Wire - 2 core, .5 sq mm, standard wire length 2 meters
External glass tube - 60 mm OD, thick walled shock proof borosilicate glass

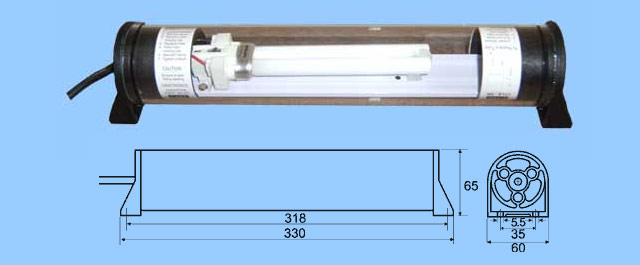

WATERPROOF LAMP - CFLB 36

Light source - Compact fluorescent lamp 4 pin 36 watt colour 86 rated lumen - 2900
External glass tube - 60 mm OD, thick walled shock proof borosilicate glass

This lamp can be supplied in anyone of the following 3 specifications

Conventional starter and external copper choke and 2 core wire
Philips Sumo choke (externally mounted) and 4 core wire
Philips model 136 TLD industrial quality choke (externally mounted) and 4 core wire
